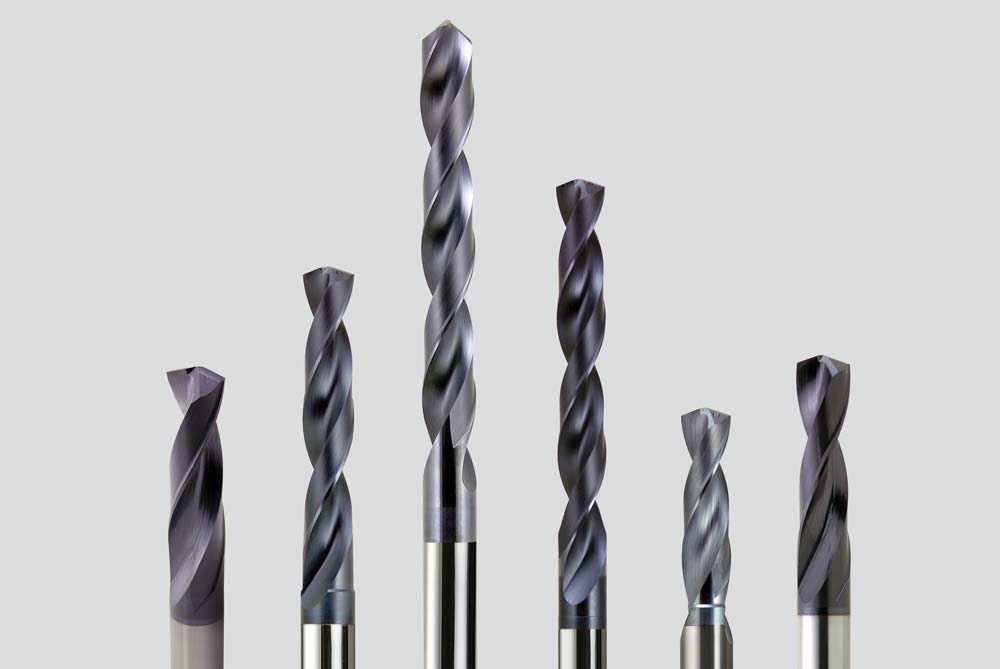

CDR - 140° Carbide Drill Coolant Hole

  • Advanced nACo Coating
    High heat & wear resistance in tough applications, especially steel alloys
  • Unique Geometry
    Honed edge prep minimizes need for pecking
  • Coolant Hole
    Centered in the helix through each flute
  • Notched, Self Centering Point Design
    Allows for free cutting by reducing power requirements
    Lowering temperatures to provide EXTENDED TOOL life

MDR - 140° Carbide Drill without Coolant Hole

  • Advanced nACo Coating
    High heat & wear resistance in tough applications, especially steel alloys
  • Special Edge Preparation
    Better cutting action
  • Strength & Rigidity
    Shorter, unique drill lengths and thick web for strength and rigidity
    For use on broad range of JOB SHOP equipment
  • Notched, Self Centering Point Design
    Allows for free cutting by reducing power requirements
    Lowering temperatures to provide EXTENDED TOOL life
  • Length & Common Shank
    All sizes have at least a 4xD drill length to cover a broad range of applications
    Precise and economical tool holding with fewer tool holders

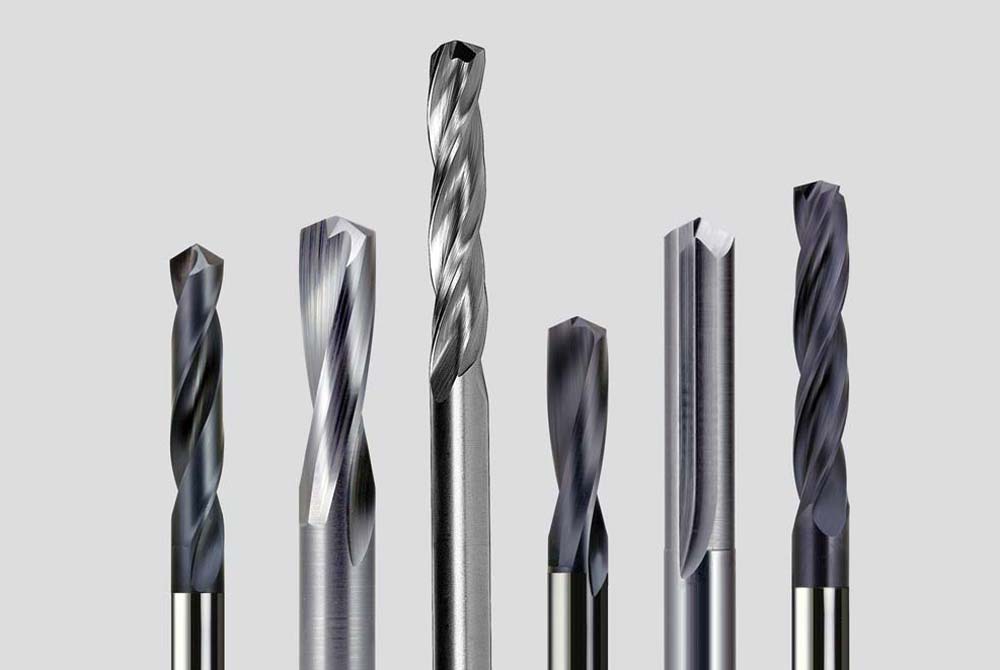

General Purpose Carbide Drills

Melin offers a large variety of general purpose carbide drills - Fractional, letter, wire & metric sizes available. Check out our large inventory offering.

  • Jobber Length - 2 Flute 118°
  • Jobber Length - 3 Flute 150°
  • Stub Length - 3 Flute 135°
  • Straight Flute - 4 Flute 140°
  • Combined Drill & Countersinks - 60° included angle
  • NC Spotting Drill - 90° & 120°
