Melin Ultra High Performance & High Performance Series End Mills

ALUMINUM ALLOYS

Flute

Corner

Description

Series

3 FluteSquare39° for Roughing & Finishing  MAL3
3 FluteCorner Radius39° for Roughing & FinishingMAL3
3 FluteBall39° for 3D Profiling for Roughing & FinishingMAL3
3 FluteSquare39° for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB
3 FluteCorner Radius39° for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB
3 FluteBall39° for 3D Profiling for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB
3 FluteSquare39° Reduced Neck for Roughing & FinishingMAL3-RN
3 FluteCorner Radius39° Reduced Neck for Roughing & FinishingMAL3-RN
3 FluteBall39° Reduced Neck for Roughing & FinishingMAL3-RN
3 FluteSquare39° Reduced Neck for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB-RN
3 FluteCorner Radius39° Reduced Neck for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB-RN
3 FluteBall39° Reduced Neck for Roughing & Finishing Chipbreaker for Reduced Chip NestingMAL3CB-RN
3 FluteCorner Radius39° Rougher for High Velocity MachiningMAL3R
3 FluteCorner Radius39° Reduced Neck Rougher for High Velocity MachiningMAL3R-RN
2 FluteCorner Radius30° for High Velocity MachiningHVMG2
2 FluteSquare45° End MillAXMG45
2 FluteCorner Radius45° End MillAXMG45
2 FluteBall45° Ball Nose End MillAXMG45-__-B
5 FluteSquare45° for Trochoidal ToolpathingGXMG5
5 FluteCorner Radius45° for Trochoidal ToolpathingGXMG5
2 FluteCorner Radius35° for light duty CNC MachinesALMG
3 FluteCorner Radius35° for light duty CNC MachinesELMG

TITANIUM & HIGH TEMP ALLOYS

Flute

Corner

Description

Series

4 FluteSquareVariable Helix for Roughing & Finishing  MTi4
4 FluteCorner RadiusVariable Helix for Roughing & FinishingMTi4
4 FluteBallVariable Helix for 3D Profiling Roughing & FinishingMTi4
4 FluteSquareReduced Neck Variable Helix for Long Reach Roughing & FinishingMTi4-RN
4 FluteCorner RadiusReduced Neck Variable Helix for Long Reach Roughing & FinishingMTi4-RN
4 FluteBallReduced Neck Variable Helix Long Reachfor 3D ProfilingMTi4-RN
5 FluteSquareVariable Index for Roughing and FinishingMTi5
5 FluteCorner RadiusVariable Index for Roughing and FinishingMTi5
5 FluteBallVariable Index for 3D Profiling Roughing & FinishingMTi5
5 FluteSquareReduced Neck Variable Index for Long Reach Roughing & FinishingMTi5-RN
5 FluteCorner RadiusReduced Neck Variable Index for Long Reach Roughing & FinishingMTi5-RN
5 FluteBallReduced Index for 3D Profiling for Roughing & FinishingMTi5-RN
5 FluteSquareVariable Index for Roughing & Finishing Chipbreaker for Reduced Chip NestingMTi5C
5 FluteCorner RadiusVariable Index for Roughing & Finishing Chipbreaker for Reduced Chip NestingMTi5C
7 FluteSquareVariable Index for HEM Roughing & Profile FinishingMTi7
7 FluteCorner RadiusVariable Index for HEM Roughing & Profile FinishingMTi7
7 FluteSquareVariable Index for HEM Roughing & Profile Finishing Chipbreaker - Reduced Chip NestingMTi7C
7 FluteCorner RadiusVariable Index for HEM Roughing & Profile Finishing Chipbreaker - Reduced Chip NestingMTi7C
4 FluteCorner RadiusVariable Helix for Roughing & Finishing in InconelMNi4
4 FluteBallVariable Helix for Roughing and Finishing in InconelMNi4
5 FluteCorner RadiusVariable Helix for Roughing & Finishing in InconelMNi5
5 FluteBallVariable Helix for Roughing & Finishing in InconelMNi5
3 FluteSquareVariable FL, HP Roughing & Finishing Applications VXMG3T
3 FluteCorner RadiusVariable FL, HP Roughing & Finishing Applications VXMG3T
6 FluteSquareVariable FL, HP Roughing & Finishing Applications  VXMG6T
6 FluteCorner RadiusVariable FL, HP Roughing & Finishing Applications VXMG6T
6 FluteCorner RadiusVariable FL, HP Roughing & Finishing Applications ChipbreakerVXMG6TCB
7 FluteSquareVariable FL, High Efficiency Roughing & Finishing Applications - NACRO VXMG7
7 FluteCorner RadiusVariable FL, High Efficiency Roughing & Finishing Applications - NACRO VXMG7
9 FluteSquareVariable FL, Fine Finishing Applications - NACROVXMG9
9 FluteCorner RadiusVariable FL, Fine Finishing Applications - NACROVXMG9
3 FluteCorner Radius35° End Mill for Stainless SteelEMG35
5 FluteSquare45° for Stainless Steel/Nickel Base AlloysGMG
5 FluteCorner Radius45° for Stainless Steel/Nickel Base AlloysGMG
Multi FluteCorner RadiusCobalt Aerocut Roughing End MillCCAC

FERROUS MATERIALS

Flute

Corner

Description

Series

4 FluteSquareVariable FL for HP Roughing ApplicationsVXMG4
4 FluteCorner RadiusVariable FL for HP Roughing ApplicationsVXMG4
5 FluteSquareVariable FL for HP Roughing ApplicationsVXMG5
5 FluteCorner RadiusVariable FL for HP Roughing ApplicationsVXMG5
7 FluteSquareVariable FL, High Efficiency Roughing & Finishing ApplicationVXMG7
7 FluteCorner RadiusVariable FL, High Efficiency Roughing & Finishing ApplicationVXMG7
9 FluteSquareVariable FL For Optimum Fine Finish Profiling ApplicationsVXMG9
9 FluteCorner RadiusVariable FL For Optimum Fine Finish Profiling ApplicationsVXMG9
4 FluteSquareMid Performance End MillMPMG
4 FluteCorner RadiusMid Performance End MillMPMG
4 FluteBallMid Performance End MillMPMG
5 FluteSquareMid Performance End MillMPMG5
5 FluteCorner RadiusMid Performance End MillMPMG5
5 FluteBallMid Performance End MillMPMG5
3 FluteSquare60° General Application in Stainless SteelsEMG60
Multi FluteSquareFine Profile Carbide Roughing End MillCRMG
Multi FluteCorner RadiusRougher FinisherCRFMG

DIE & MOLD STEELS

Flute

Corner

Description

Series

2 FluteCorner RadiusMulti Axis Machining - Rib CuttingHMG1
2 FluteBallZ-Axis Machining- Rib CuttingHMG1
2 FluteBallHard Milling in Die & Mold ApplicationHMG
6 FluteCorner Radius45° Profiling End MillCCMG45

GRAPHITE & COMPOSITES

Flute

Corner

Description

Series

2 FluteSquareCVD Diamond CoatingAMG
5 FluteBallCVD Diamond CoatingAMG
4 FluteSquareCVD Diamond CoatingCCMG
4 FluteBallCVD Diamond CoatingCCMG
Multi FluteSquareComposite Router For Carbon FiberCRMGD
Multi FluteNo End CutFiberglass RoutersFRMG
Multi FluteSquareFiberglass RoutersFRMG
Multi Flute135° Drill PointFiberglass RoutersFRMG
2 FluteSquareDLC Amorphous Diamond CoatingAMG
2 FluteBallDLC Amorphous Diamond CoatingAMG
3 FluteSquareDLC Amorphous Diamond CoatingEMG
3 FluteBallDLC Amorphous Diamond CoatingEMG
4 FluteSquareDLC Amorphous Diamond CoatingCCMG
4 FluteBallDLC Amorphous Diamond CoatingCCMG

VARIOUS MATERIAL

Flute

Corner

Description

Series

2 FluteSpherical Ball220° Spherical Ball End Mill  VBMG2
4 FluteSpherical Ball220° Spherical Ball End MillVBMG4
2 FluteSpherical Ball270° Spherical Ball End Mill VBMG2
4 FluteSpherical Ball270° Spherical Ball End Mill VBMG4
2 FluteSpherical Ball300° Spherical Ball End MillVBMG2
4 FluteSpherical Ball300° Spherical Ball End MillVBMG4
Double Angle Cutter60° and 90° Double Angle CutterDA
3 FluteChamfer Mill60°, 90°, 120° Chamfer MillCMG3H
5 FluteChamfer Mill60°, 90°, 120° Chamfer MillCMG5H
2 FluteSquareHigh Feed Carbide End MillHXMG2
4 FluteCorner RadiusHigh Feed Carbide End MillHXMG4
4 FluteBallHigh Feed Carbide End Mill (hard milling)HXMG4
2 FluteDrill Point142° NC Carbide Spotting DrillHDRNC
2 FluteDrill Point140° Point Carbide Coolant Hole DrillCDR
2 FluteDrill Point140° Point Carbide Drill Without Coolant HoleMDR
Multi FluteThread Mill60° Straight Flute, UN ThreadTM
Multi FluteThread Mill60° Helical Flute, UN ThreadTM
Multi FluteThread MillSingle Form ThreadTM
Multi FluteThread MillNPT Thread, Straight & Helical FLTM
Multi FluteThread MillNPTF Thread, Straight & Helical FLTM

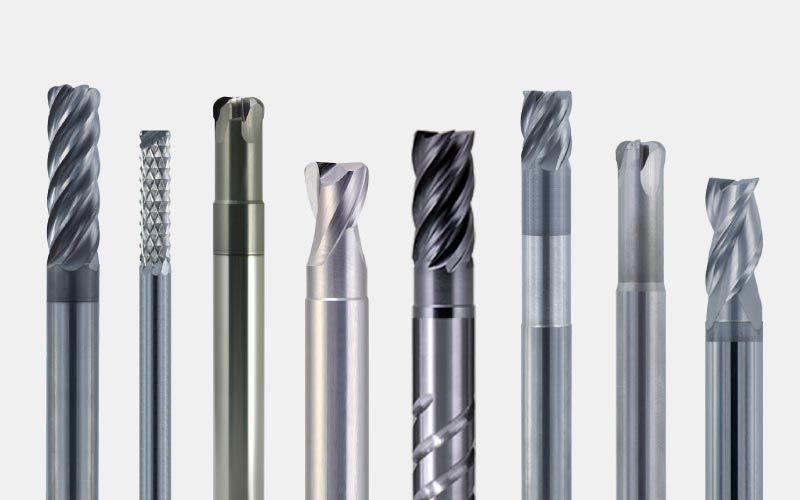

Melin High Performance Line

Recently expanded Melin Ultra High Performance and High Performance End Mill and Drill Line

  • Tools ideal for difficult to machine material like Titanium and Inconel
  • Proprietary coatings allows for higher SFM and is especially effective in extending tool life
  • Polished features in Aluminum to avoid chip nesting an optimize chip evacuation
  • ChipBreaker options available standard or as a customization
  • Easily customize a standard into a special with our unique approach to customizations
  • Designed to deliver outstanding surface finishes, utilizing maximum metal removal rates

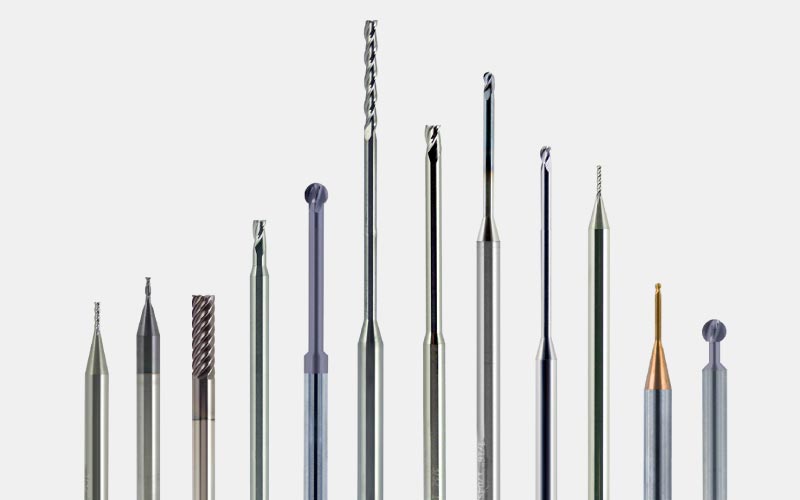

Micro End Mills The Manufacturer Advantage – Get to know who makes your micros

Recently expanded Melin Micro End Mill line. Melin now offers several existing Carbide End Mill series in Micro sizes as well as new micro products series. Our latest Micro expansions offers the following features

  • Diameters start at .005”
  • 2, 3 and 4 Flute- Square, Ball, and Radius
  • 3 Flute Variable HP roughing and finishing
  • 2 Flute Ball nose for Z-Axis Machining
  • Expanded Diamond Coated Micros
  • Spherical Balls
  • Drill Points
  • Corner Rounders
  • Advanced coating options

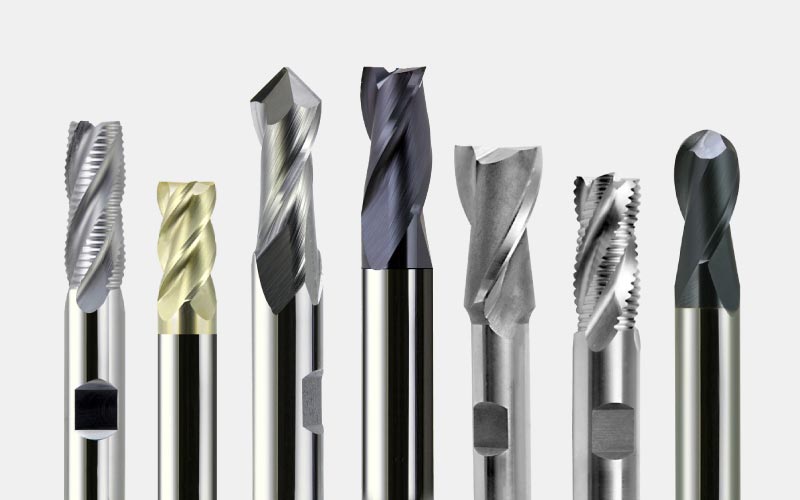

General Purpose Melin premium solid Carbide & Cobalt HSS End Mills

Melin offers a large variety of both Carbide and Cobalt HSS end mills. These series are offered with a variety of coating and end style options. Melin continues to expand the product line with improved geometry and coating options.

  • General Purpose 2, 3, & 4 Flute Carbide End Mills Square, Ball, Corner Rounders
  • Powdered Metal End Mills
  • NC Tolerance
  • Roughing End Mills (Fine Pitch and Coarse Pitch)
  • Drill Point
  • Routers
  • Tapered End Mills
  • Chamfer
  • Carbide Blanks
  • Single and Double End Mills
